AGRI Culture Harvester V Belts

Endura Hi-Tech 'AGRI-POWER' Agricultural belts are optimised in the quality required on sophisticated farm machines such as combines, transplanting, reapers, thrashers and cultivating machines. These belts provide the highest performance under tough conditions as they are specially designed with raw materials of outstanding flexibility, resistance against heat and dynamic elongation.

Features:

  • • Specially designed for application with outside idlers.
  • • Equal load is transferred to all tensile members for uniform load carrying capacity.
  • • Outstanding transverse stiffness.
  • • Reliable tensioning capacity. Maintenance free.
  • • High Strength textile member gives low stretch.

Market's Applications: Specially used in Harvester combine machines, cultivating machines etc.

Length Designation: Li (inside length in mm)

Dimensions, Range and standards: Available as per ORPL standards. For range, please refer below table.

Section code Top width (mm) Height (mm) Length range (mm)
HK-36 36 14 900-1140
HL-45 45 20 2500-3500
HM-50 50 20 1825-4000

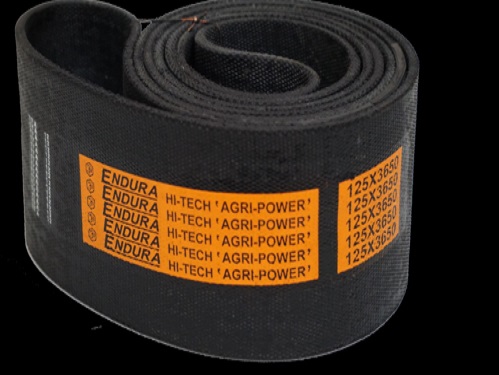

Endura Hi-Tech ‘AGRI-POWER’ Harvester Flat belts

Endura Hi-Tech 'AGRI-POWER' Harvester Flat belts for combine Harvester use come in a wide spectrum of sizes and cross-sections. Their high tensile strength core accounts for low elongation while the specially designed hi-grip wrapping fabric grip gives it excellent grip in the pulley groove, both ensuring very efficient power transmission.

Features:

  • • Ideal for drives where pulsating loads are present.
  • • Eliminates belt whip, belt twist and belt turn.
  • • High-strength tensile members for better performance.
  • • Heat, oil and abrasion resistant.

Market's Applications: Specially used in Harvester combine machines.

Length Designation: Li (inside length in mm

Dimensions, Range and standards: Available as per ORL standards. For range, please refer below table

Section code Top width (mm) Height (mm) Length range (mm)
75 75.00 6.5 2600-3500
100 100.00 6.5 3000-3500
114 114.00 6.5 3000-3600
125 125.00 6.5 3000-3800
137.5 137.50 6.5 3500-4000
500 500.00 6.5 3500-5000
